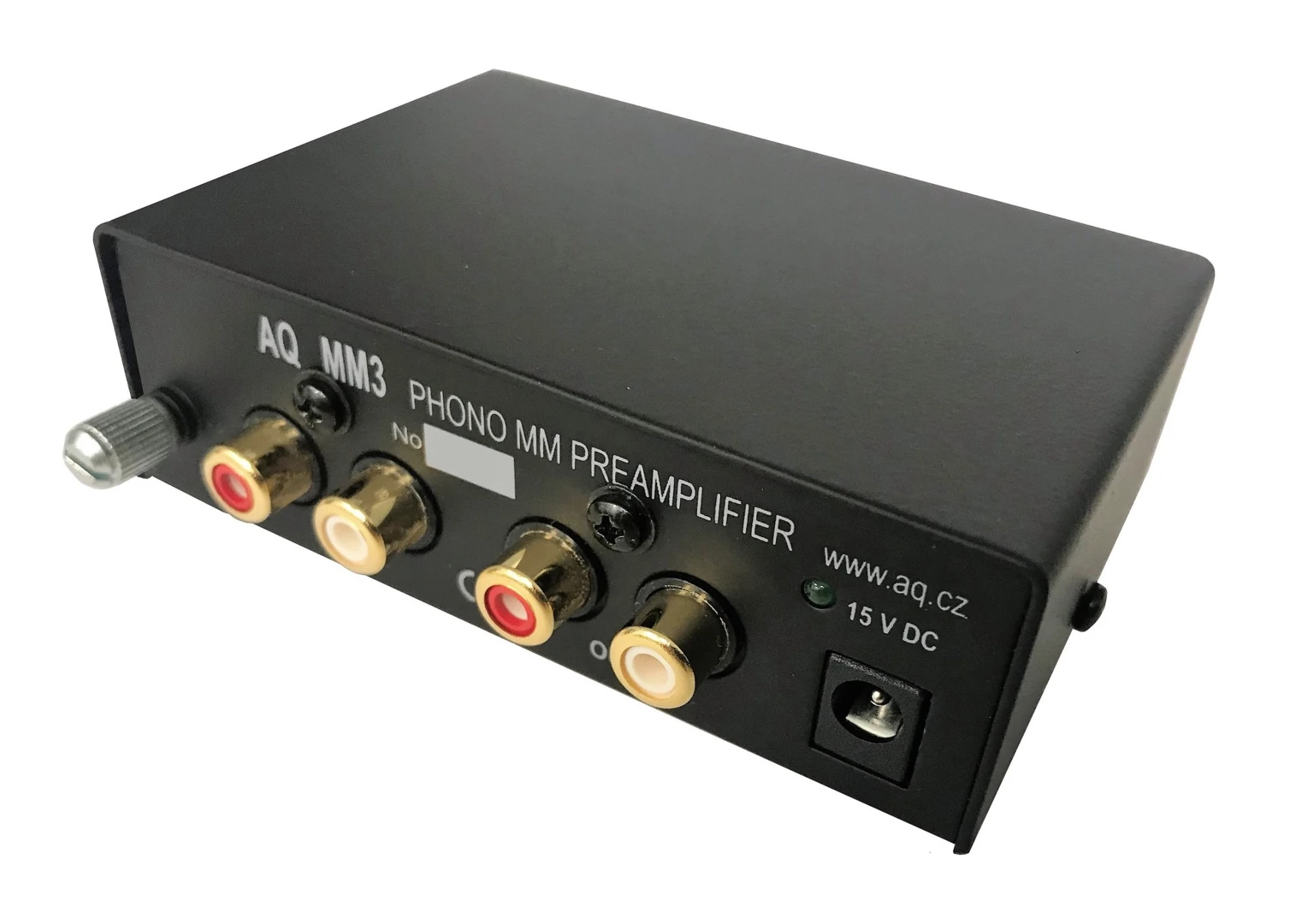

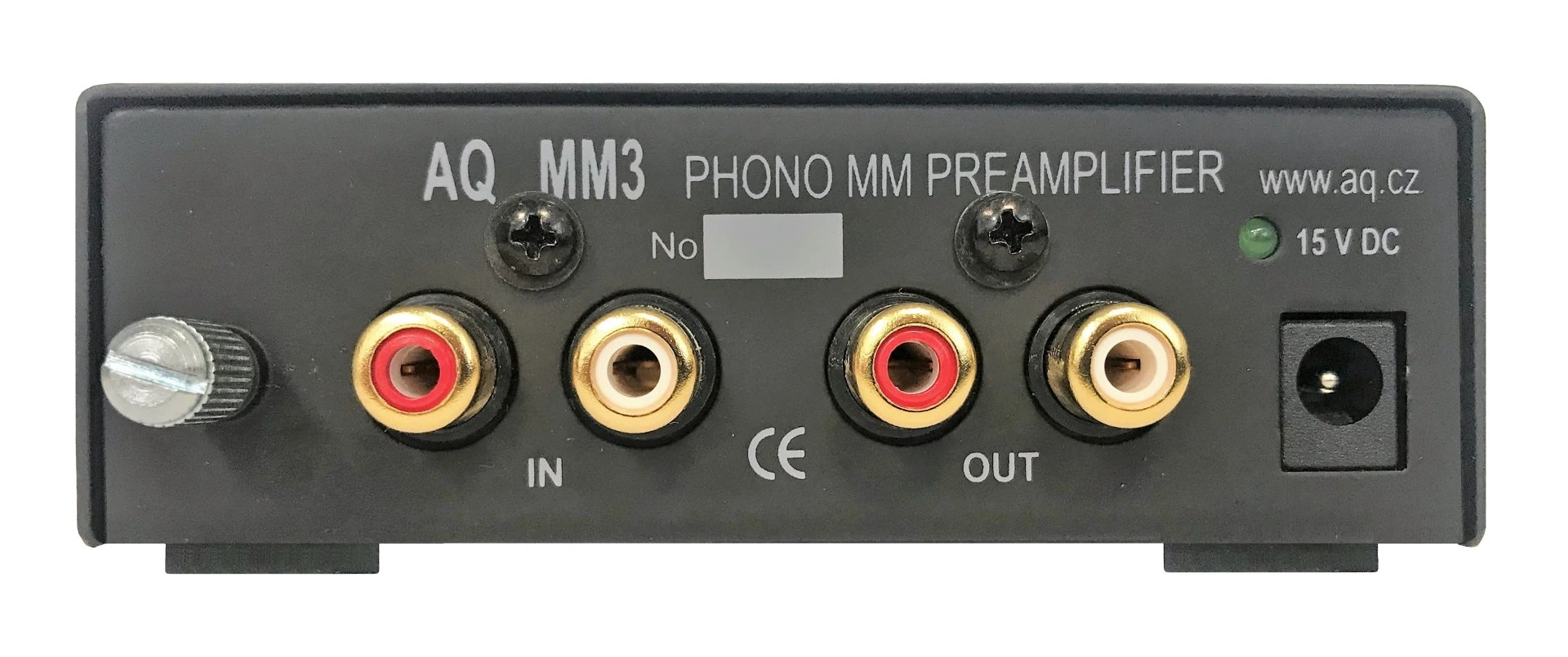

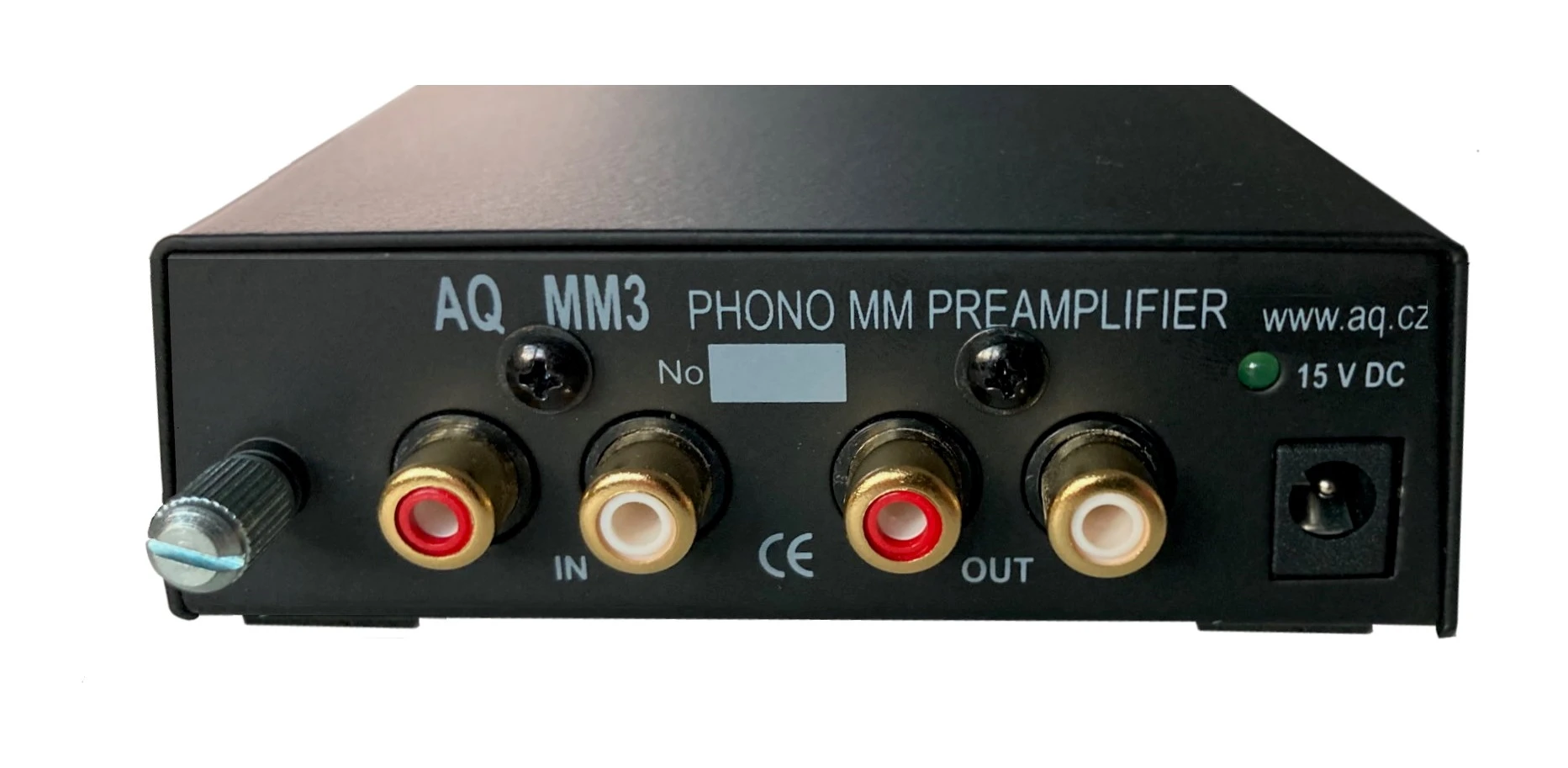

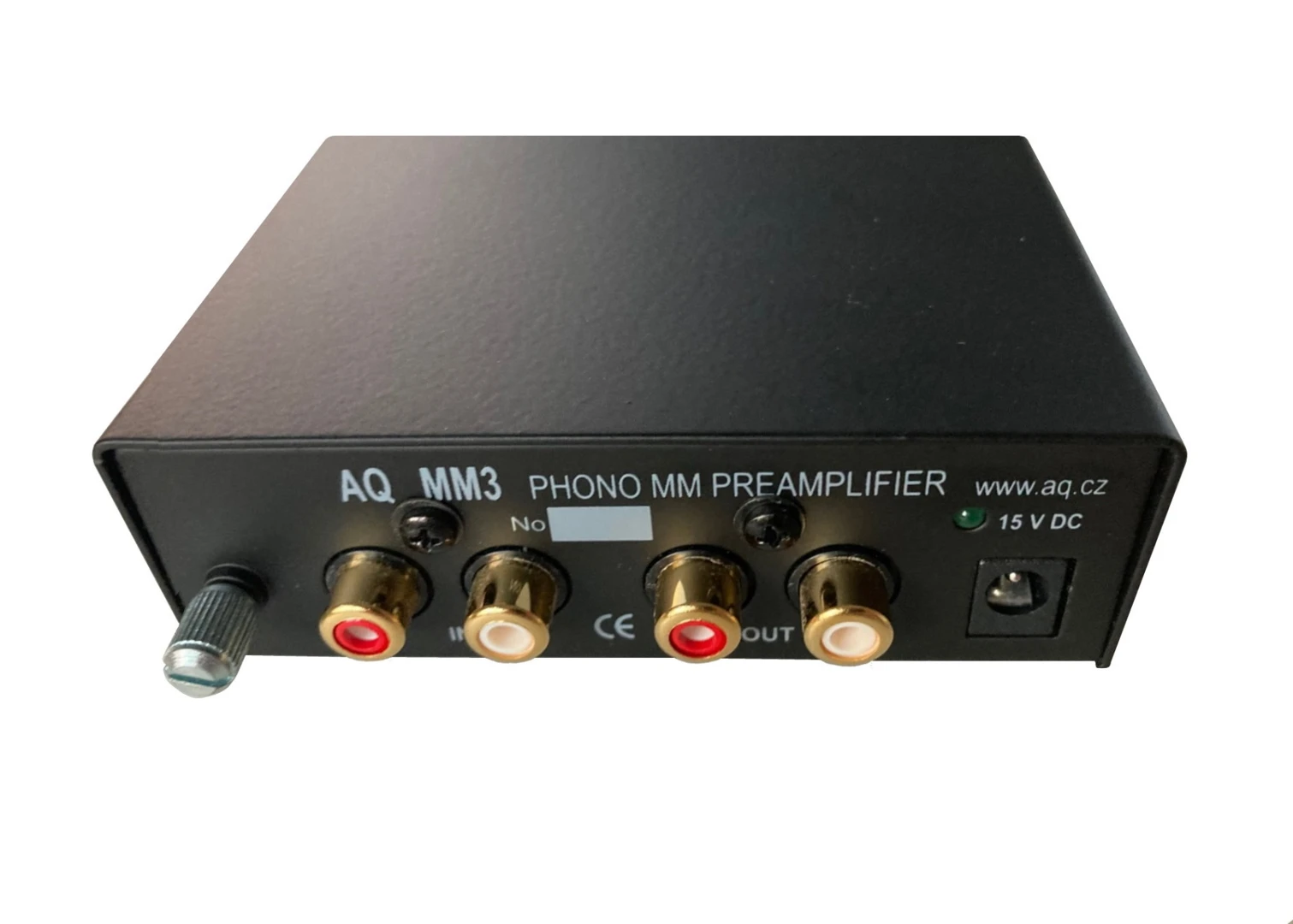

AQ MM3

Preamplifier for magnet moving cartridge, external (switching) power supply (in packaging).

- It allows the connection to the turntable and devices without special Phono input.

- A completely new construction ensures excellent noise reduction.

- Used high quality and long-life components.

- Quality and steady sound.

Technical parameters:

Nominal input impedance: > 47 kOhm

Nominal loading impedance: ≥ 22 kOhm

Max. channel difference at 1 kHz: 0,2 dB

Crosstalk between channels: ≥ -70 dB/1 kHz

Distortion THD: < 0,08 %       63 Hz až 15 kHz

Foreign voltage interval: min. -50 dB/1 KHz

Power from the supplied source: 12-15 V, DC (spínaný zdroj)

Dimensions (w x d x h): 95 x 78 x 30 mm
